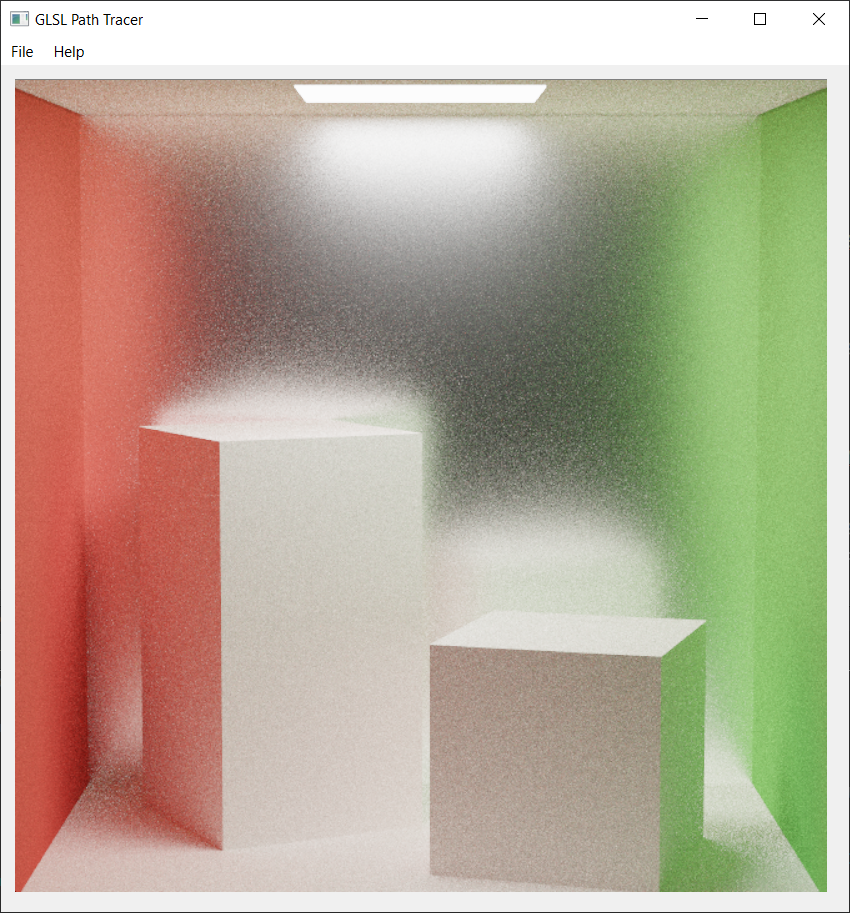

Project

Unity Shading

Car painting

• Shading in Unity engine.

• Using Substance create a distance map, shading to mimic the shape of a flame.

//////////////////// fragment shader snippet ////////////////////
...

float speed = frac(_Time.x * + _lavaSpeed);
float4 wave = tex2D(_lavawaveTex, (i.texcoord.zw + float2(0, speed)) * 2) * 2 - 1;
wave = wave.r * _lavaWave;
float4 gas = tex2D(_lavawaveTex, float2(i.texcoord.z * _gasOffset.x, i.texcoord.w * _gasOffset.y + frac(_Time.y * + _gasOffset.z)));
float4 lava = tex2D(_lavaTex, float2(i.texcoord.zw + wave.xy));
float4 mask = tex2D(_lavaTex, i.texcoord.zw);
lava = (lava.r + gas.g * _gasOffset.w) * _lavaCol * mask.g;

...

• Other types of car paint.

• Stylized cloud material.

//////////////////// vertex shader snippet ////////////////////
...

// make noise in worldSpace
float speed = frac(_Time.y * _speed);
float3 blend = v.vertex.xyz * _scale;
float4 noiseXY = tex2Dlod(_Noise, float4(blend.xy + speed, 0, 0));
float4 noiseYZ = tex2Dlod(_Noise, float4(blend.yz + speed, 0, 0));
float4 noiseXZ = tex2Dlod(_Noise, float4(blend.xz + speed, 0, 0));
float4 noise = noiseXY;

// lerp
noise = lerp(noise, noiseXZ, o.normal.y);
noise = lerp(noise, noiseYZ, o.normal.x);
o.color = v.color;
noise *= o.color;

//noise plus v.vertex
v.vertex += v.normal * (noise * _range);
o.pos = UnityObjectToClipPos(v.vertex);

...

• Liquid wave material.

fixed4 frag(v2f i) : SV_Target
{
    // WAVE cubemap
    float speed = frac(_Time.y * _speed);
    float3 flowDir = tex2D(_fmap, float2(i.texcoord.x * _offset.x + speed, i.texcoord.y * _offset.y)) * 2 - 1;
    flowDir *= _strength;
    float offset0 = frac(_Time.w * 0.5 + 0.5);
    float offset1 = frac(_Time.w * 0.5 + 1.0);
    float offsetlerp = abs((0.5 - offset0) / 0.5);
    fixed4 msk = tex2D(_MaskTex, i.texcoord);
    fixed4 refl0 = tex2Dproj(_ReflectionTex, UNITY_PROJ_COORD(i.refl) + float4(flowDir.xy * offset0, 0, 0));
    fixed4 refl1 = tex2Dproj(_ReflectionTex, UNITY_PROJ_COORD(i.refl) + float4(flowDir.xy * offset1, 0, 0));
    fixed4 refl = lerp(refl0, refl1, offsetlerp);
    refl.a *= msk.r * _Alpha * i.color.a;
    return refl;
}

Card battle

• In game low cost dynamic shadow

Tools Development

• Organize assets and generate USD files. Built with Python.Link

• Developed a C++ image processing tool that supports multithreading for efficient performance.Link

• Designed and implemented a Python-based Qt tool to export cache files into Unreal Engine, improving workflow efficiency.

• Implemented a Python-based Qt interface for a hair plugin, facilitating seamless integration and user interaction.

• Developed a curve editor supporting linear and cubic Bézier curves using C++ and CMake.

• Created a Qt-based 2D drawing tool using OpenGL and C++.

rigging

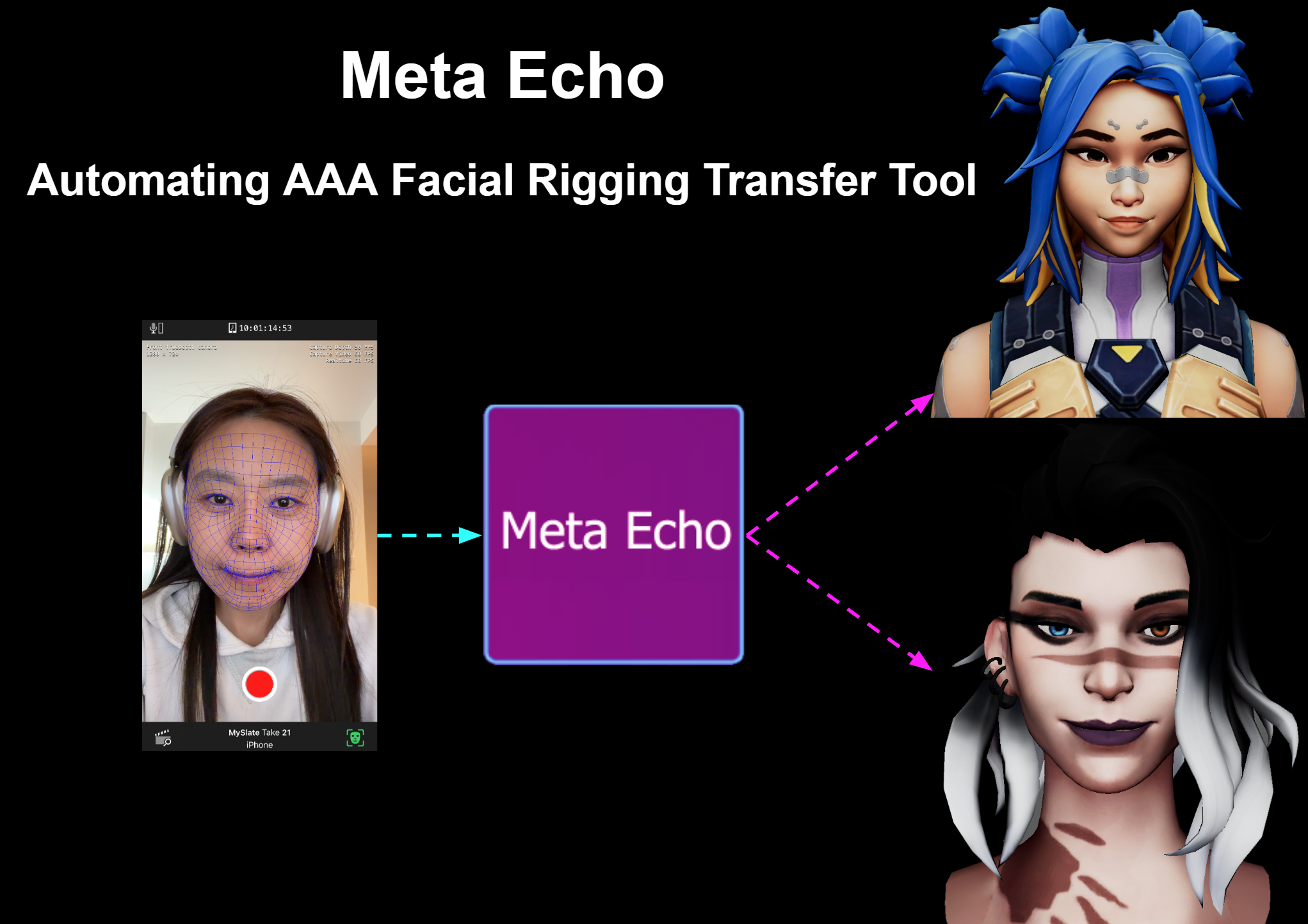

Facial rigging

• Base on Unreal MetaHuman, rigging facial mesh in maya, modifying and generating new DNA source.

Dynamic bone

• Set in game hair Dynamic Bone.

Grooming

• Create by maya tool that made by our TA team. Creating hair card maps base on XGen and modeling FurCard by self developed tool.

• Hair Rendering in Unreal Engine.

• Animal fur test. Baking vertex color on FurCard mesh blend base color fo body model in unreal engine

Modeling

chess Game Online

• Modeling and drawing texture rendered in unity engine

substance workflow

• Substance Designer work flow. Quickly create textures using only SmartMaterial.

PhotoScan workflow

• Create textures using PhotoScan workflow.

Patent

• As main Inventor-shadow in SNS game : CN110517346B

terrain shadow case

1. Set a camera as the light position, get a renderTexture

2. Shading and sampling RT

   // project RenderTexture in world position
   v2f vert(appdata v)
   {
       fixed4 tex = tex2D(_MainTex, i.texcoord);
       fixed spec = tex.a;

       float2 shadow_uv = mul(_ShadowVPMatrix, i.worldPos).xy * 0.5 + 0.5;
       fixed atten = tex2D(_CurrentShadowmap, shadow_uv).r;
       fixed4 shadow_color = lerp(_ShadowCol, fixed4(1, 1, 1, 1), atten);
       //blend shadow and texture
       tex = _MainColor * _DirectionalLightColor * shadow_color * tex;

       half4 normalMap = tex2D(_BumpMap, i.texcoord);
       half3 normalDir = normalize(UnpackNormal(normalMap));
       half3 viewDir = normalize(i.viewDir);
       half3 lightDir = normalize(i.lightDir);
       half3 h = normalize(viewDir + lightDir);
       float r = max(0, dot(h, normalDir));
       tex += _SpecularCol * spec * pow(r, 48);
       return tex;
   }

   element shadow case



   1. Bake 4 directional shadow in solo channel



   2. Shading and sampling RGBA channel shadow, and then dye color to them

      fixed4 frag(v2f i) : COLOR
      {
          fixed4 tex = tex2D(_MainTex, i.texcoord.xy);
          //added shadow information
          fixed4 lm = tex2D(_ShasowTex, i.texcoord.zw);

          fixed shadowvalue = dot(lm, _ShadowDir);

          tex = lerp(tex * shadowvalue * _ShadowCol, tex, shadowvalue);
          tex = lerp(tex, tex * _LightPower, shadowvalue * 1.8);

          #ifdef _GRADIENT_ON
              tex *= i.gradient;
          #endif

          return tex;
      }

      elements batch

      • Generating UV3 to show shadow channel, and then to deal static batch.





      about me

      Education

      University of Pennsylvania. USA, PA

      • Computer Graphics and Game Technology Sep 2024 - Oct 2026

      • Computer and Information Technology Sep 2023 - Jul 2024

      Skills

      Programming Skills

      • C++, C, Assembly, Python, Java, OpenGL, GLSL

      DevTools

      • Snapdragon Profiler, Unity, Unreal Engine5, Qt creator, cMake, Maya, Substance Designer

      Core Skills

      • Computer Graphic, Developed and optimized mobile application, Scripting, Shader-Programming
